Experience Vivid Visuals With The 2.8 Inch Small LCD Display High Resolution 65K Colors
Small Lcd Display Description:
Elevate your viewing experience with the 2.8 Inch Small LCD Display. This high-resolution display, boasting 240(horizontal)*320(vertical) pixels, delivers detailed and clear images, making it ideal for various applications.
The powerful RGB interface ensures efficient data transmission, resulting in smooth and seamless display operations. Able to render 65K colors, this small LCD display, powered by A-Si technology, offers a visual spectacle for viewers. The R.G.B.Stripe pixel configuration and pixel pitch of 0.180x 0.180mm contribute to the overall sharp image quality.
Equipped with an ST7789V driver IC, the display operates in a Normally White display mode. The display has an optimized viewing direction of 6 O'clock and grayscale inversion direction of 12 O'clock. It has a compact size with an active area of 43.2*57.6mm, ensuring it is suitable for a variety of applications.
Despite weighing only 13g, this display doesn't compromise on brightness, with its four LEDs providing optimal illumination. The 2.8 Inch Small LCD Display offers a powerful performance that stands out in any use-case scenario. Its compact size, high-resolution display, and vibrant color display make it a top choice for all your display needs.
Small Lcd Display Applications:
1. Industrial Applications: In industrial settings, the Small LCD Display is used in control panels, handheld instrumentation, testing equipment, and many others due to its durability and ability to operate in harsh conditions. Their ability to withstand extreme temperatures and deliver clear images makes them ideal for such environments.
2. Automotive Applications: In automotive electronics, Small LCD Displays are used in on-board diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
Small Lcd Display Parameters:
| Keywords: | 2.8 Inch Small LCD Display | Size: | 2.8inch |
| Resolution: | 240(horizontal)*320(Vertical) | Interface: | RGB |
| Connect Type: | Connector | Display Colors: | 65K |
| Technology Type: | A-Si | Pixel Pitch (mm): | 0.180x 0.180 |
| Pixel Configuration: | R.G.B.Stripe | Display Mode: | Normally White |
| Driver IC: | ST7789V | Viewing Direction: | 6 O’clock |
| Gray Scale Inversion Direction: | 12 O’clock | LCM (W X H X D) (mm): | 50*69.2*2.3 |
| Active Area(mm): | 43.2*57.6 | With /Without TSP: | Without |
| Weight (g): | 13 G | LED Numbers: | 4LEDs |
|
|

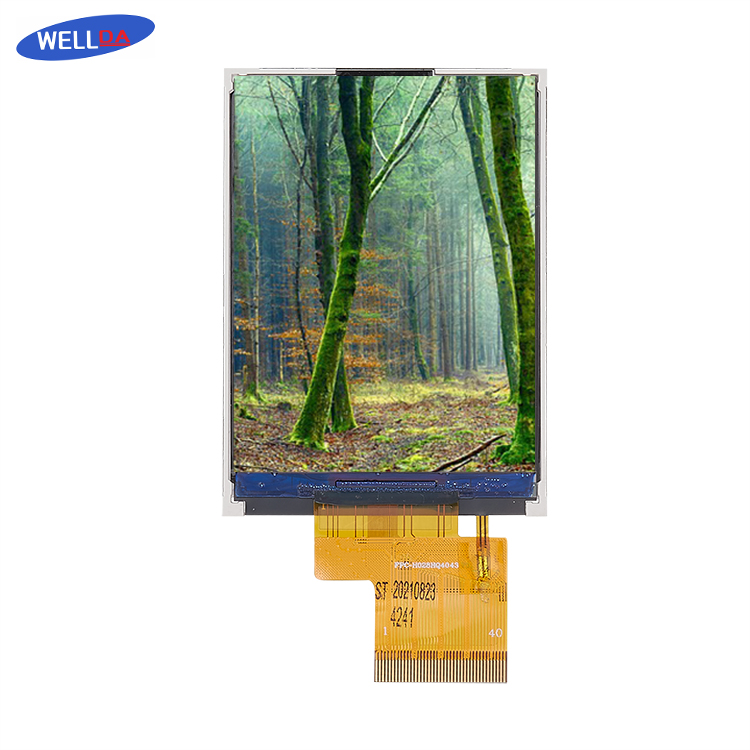

Experience Vivid Visuals With The 2.8 Inch Small LCD Display High Resolution 65K Colors Images
|
